The PVF module reads pressure, velocity and airflow. Every pressure module is calibrated against NIST standards and comes with a certificate of calibration. By using a wrist reporter with the PVF module, a user can see real-time results wirelessly on the wrist.

Applications:

• Room Pressures

• Duct Pressures

• Building Pressurization

• Velocity with Pitot Tube or Foil

• Airflow with Capture Hood

• Datalogging

Room To Room Pressures :

For room-to-room pressure applications, a user can place up to 10 pressure modules and monitor all 10 concurrently while making adjustments.

Velocity & Duct Readings :

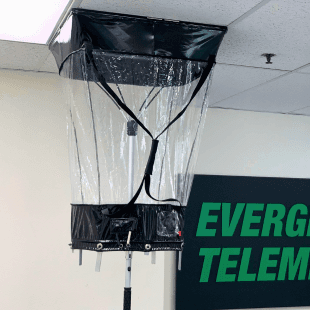

The pressure module can also be used with a capture hood to measure velocity and flow applications. This allows the user to monitor multiple diffuser air flow relationships.

Features & Benefits :

• Certified NIST traceable

• Lithium Ion Battery. 30 hours per charge. Recharge in 4 hours

• Connections: 1/4” OD slip-on for 3/16” ID soft tubing

• Operational Temp Limits: 40°F to 140°F

• Datalogging: Time-stamped readings. Up to ten sensors simultaneously. User-selectable reading intervals of 10 mins, 1 min, etc.

• Air Density Correction: Local air density correction range is 14 to 32 in Hg and 32°F to 158°F
